| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | ForeQuant |
| إصدار الشهادات: | ISO9001 ISO13485 CE |
| رقم الموديل: | سادس 2 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | USD 7500-8000 per set |
| تفاصيل التغليف: | التعبئة مع الكرتون العابر الآمن |
| وقت التسليم: | 5-8 أيام |
| شروط الدفع: | L / C ، T / T ، ويسترن يونيون |
| القدرة على العرض: | 10000 مجموعة في السنة |
| Material: | Aluminium alloy housing | Color: | Yellow |
|---|---|---|---|
| Power: | 220V/optional 12 volt 10A mobile power supply | Sample capacity: | 2x8 wells(0.2ml single tube,8 strip tube) |
| Detection Systems: | High sensitivity MPCC | Maximum heating and cooling rate: | 8°C/S |
| Detection time: | With single-copy gene, can distinguish 1.33-fold copy number difference in single-plex reaction | Product Name: | MINI PCR Machine |
| تسليط الضوء: | RT qPCR Machine 2x8 Wells,RT qPCR Machine 12 Volt,mini PCR Machine 12 Volt,RT qPCR Machine 12 Volt,mini PCR Machine 12 Volt |
||

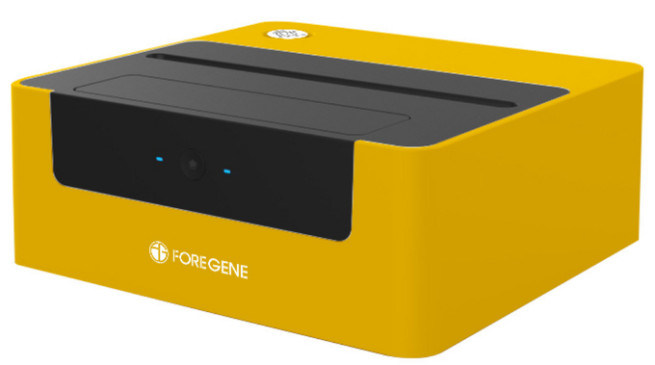

Samll Size Fast Portable Quantitative MINI PCR Machine For CRO Company University Lab Use
Quick Detail:
Description:
Real-time fluorescence quantitative pcr is more and more widely used as an important technology in scientific research and molecular diagnosis.In order to meet the needs of fast, timely detection and small flux scientific research and teaching. Foregene introduced this ultra-fast portable fluorescent quantitative pcr instrument system ForeQuant SF series, use of innovative circulating liquid refrigeration technology combined with the Peltier temperature control technology, simple operate software, lightweight and compact body, can be free from site constraints, quick and accurate completion of quantitative pcr-related applications.
Product Composition:
Quickly obtain test results and timely detect important application requirements on site to meet such actual needs. ForeQuant SF series especially adopts innovative liquid cycle refrigeration technology combined with unique temperature control technology to ensure the uniformity and accuracy of all temperature control performance. To achieve the purpose of ultra-fast temperature change, the maximum temperature rate is 8 degrees per second. After repeated tests, under the same experimental design and operating conditions, the time required for the experiment can be reduced by half compared with the general 96-well quantitative PCR method.
Specifications:
| Product Name | Mini PCR Machine | ||
| Temperature control | Optical inspection | ||
| Sample capacity | 2x8 wells(0.2ml single tube,8 strip tube) | Excitation light source | Monochromatic high-efficiency LED |
| Reaction volume | 10-50 ul | Detection Systems | High sensitivity MPCC |
| Thermal cycle | Peltier | Detection mode | Ultra-fast hole-by-hole scanning |
| Cooling mode | Liquid circulation refrigeration | Fluorescent channels | Standard two channels(FAM/VIC), optional four channels(FAM/VIC/ROX/CY5) |
| Maximum heating and cooling rate | 8°C/S | Detection time | ＜ 30 mins (combined with FOREGENE fast kit) |
| Temperature accuracy | ±0.2°C | Sensitivity | With single-copy gene, can distinguish 1.33-fold copy number difference in single-plex reaction |
| Temperature uniformity | ±0.2°C @60°C 土 0.2℃ @95℃ | Dynamic Range | 10 orders of magnitude |
| Hardware and other parameters | |||
| Noise | <50 dB | Size | 205x190x98mm (LxWxH) |
| Power supply | 220V/optional 12 volt 10A mobile power supply | Software systems | Windows |
| Software functions | |||
| Amplification curves, absolute quantitative, qualitative analysis, dissolved curves | |||
Features&advantages:
-Ultra-fast: Ultra-fast heating speed enables qPCR detection to be completed within 30 minutes to ensure quick results on site.
-Portable: Small and portable, it can fully meet the on-site real-time testing needs of disease control, customs, commodity inspection, and environmental protection.
- Reliable: Precise temperature control and detection technology, with the same performance as bench-top qPCR, ensures the reliability of the experimental results.
Outstanding Performance
High repeatability
High sensitivity
Multiple detection
High resolution
Easy use software:
Application:
-Disease Prevention and Control
-Food Safety
-Medical Diagnosis
-Scientific Research
-The customs
-Environmental Protection
-Commodity Inspection
-Other timely on-site testing.
Storage and transportation environment:
Temperature:-20℃ ~ 55℃,the instrument packaging in the transport box；
Humidity:≤85% RH
